Wiring method:

CAT5/6 cable

Night vision:

5 LED infrared night vision lights

The best distance for night vision:

1-10 meters

Camera angle:

120 degrees

Operating temperature range:

-20°-- +60 °

Host material:

ABS plastic rain cover + metal plate

Installation method:

flat installation

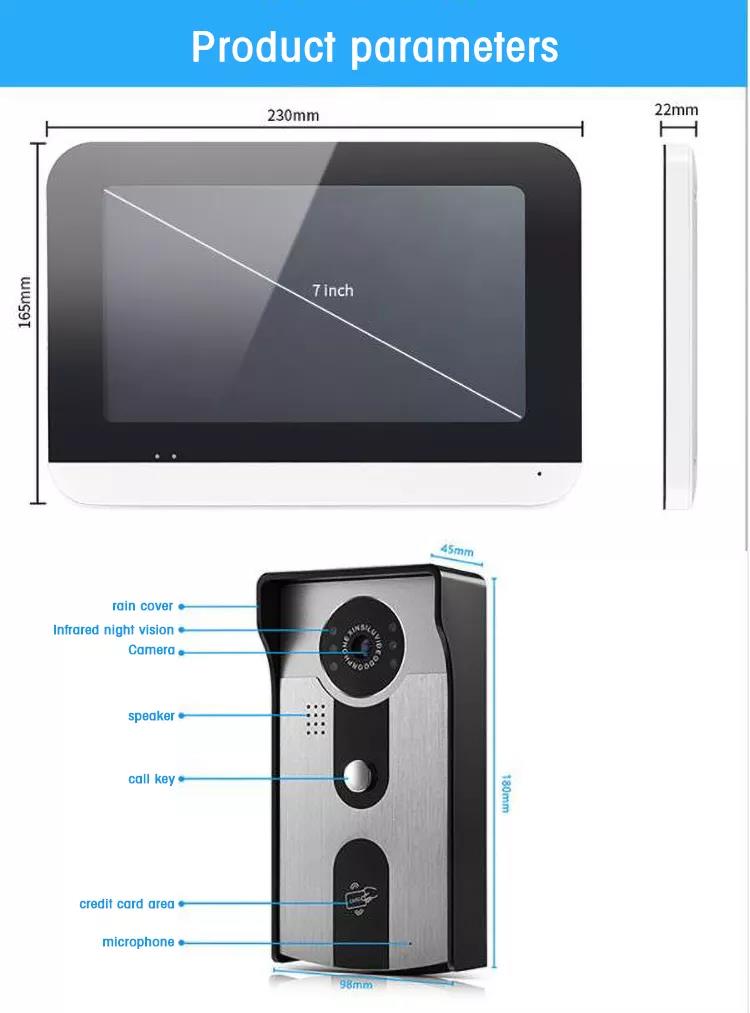

Dimensions:

180* 98* 35mm ( rain cover is 45mm)

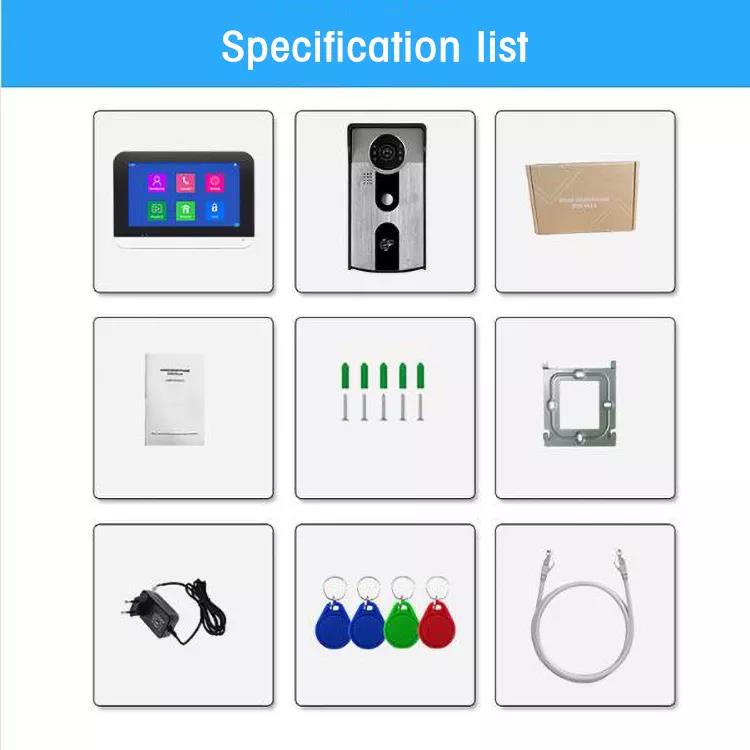

Included accessories:

2 management cards, 2 user cards

Net weight:

0.6kg

Indoor unit

Display:

TFT-LCD 7-inch digital high-definition

Resolution:

1024*600

Input voltage:

AC 100V-240V

Output voltage:

DC12-15V 1.2A

Ringtones:

10

Wiring method:

CAT5/6(max support 100M)

Multi user :

need POE switchboard (max support 200 meters from indoor to outdoor )

Installation method:

wall hanging

Dimensions:

195* 132*18mm

Material:

ABS plastic + glass panel

Weight:

0.55kg
